Minchinhampton Solar and Battery Storage

Minchinhampton, Gloucestershire · Residential renewable energy

A high-performance residential renewable energy installation in Minchinhampton, combining solar generation across two roof areas with substantial battery storage and full-home backup capability.

Solar panels across the roof of a Gloucestershire bungalow with battery storage installed to the side elevation
First roof area: all-black panels set neatly within the tile line with bird protection mesh.

Project overview

The property had significant electrical demand and a strong interest in energy independence. Generation was split across two roof areas to make best use of available orientation, and storage was divided between two locations to suit the building.

The brief

Install a solar PV system sized to the property, provide substantial storage with backup capability during power cuts, and allow the system to be expanded in future.

ADM's scope of work

  • Installation of 22 450W solar panels across two roof areas
  • 9.9kWp total solar generation capacity
  • 45kWh Sigenergy SigenStor battery storage
  • Storage split across two locations on the property
  • Sigenergy Gateway for full-home backup capability
  • Integration with the existing electrical distribution
  • Commissioning, monitoring setup and client handover

Key systems and products

  • 22 × 450W solar panels (9.9kWp)
  • Sigenergy SigenStor 45kWh battery storage
  • Sigenergy Gateway
  • Intelligent energy management
  • Modular expansion capability

Technical highlights

  • Generation split across two roof areas to suit orientation and shading
  • Storage divided between two locations to work with the building layout
  • Gateway configured to provide backup to the whole home during an outage
  • Modular battery design allows capacity to be added later

Project gallery

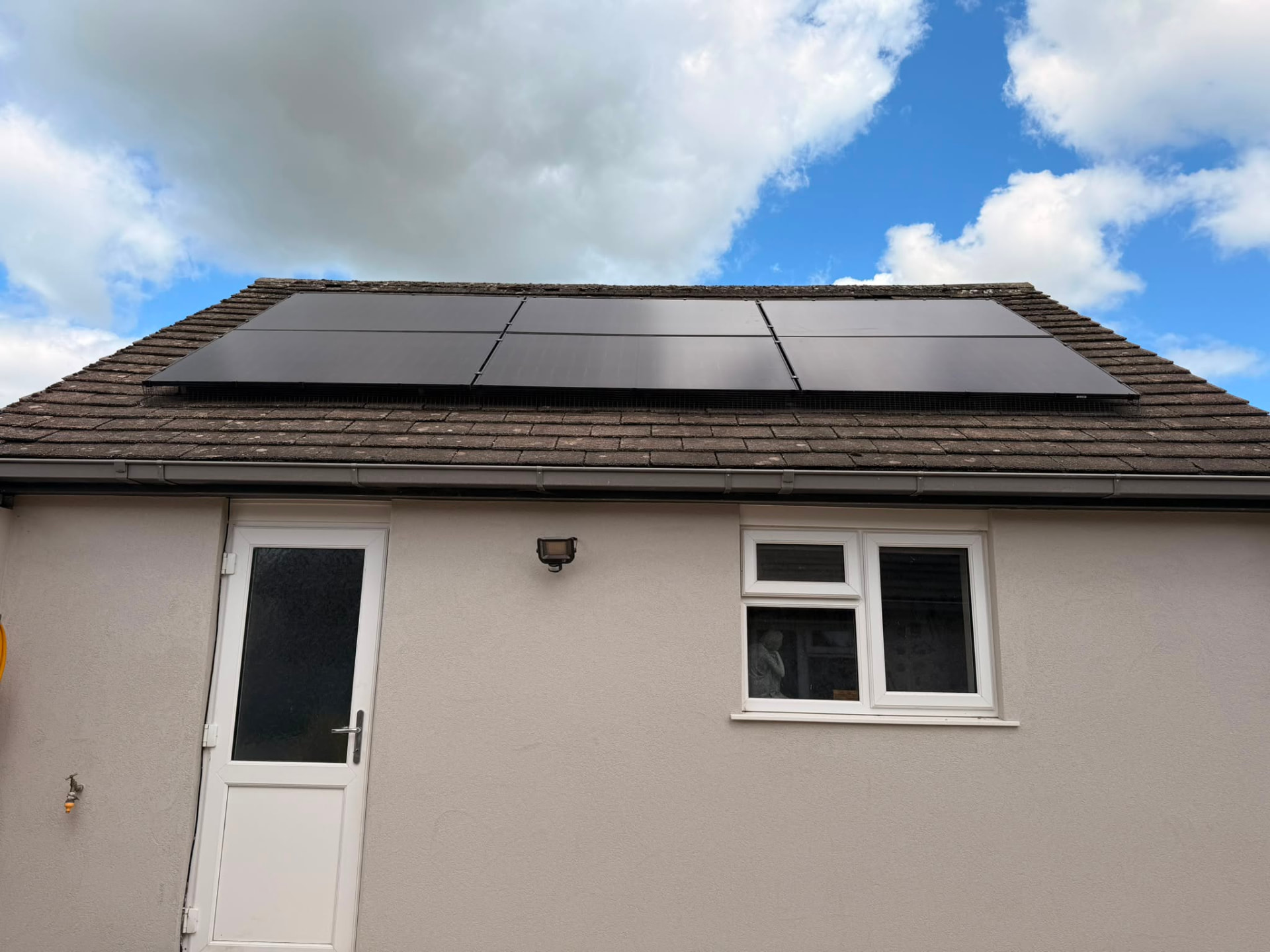

Black solar panels installed on a tiled garage roof under blue sky
First roof area: all-black panels set neatly within the tile line with bird protection mesh.

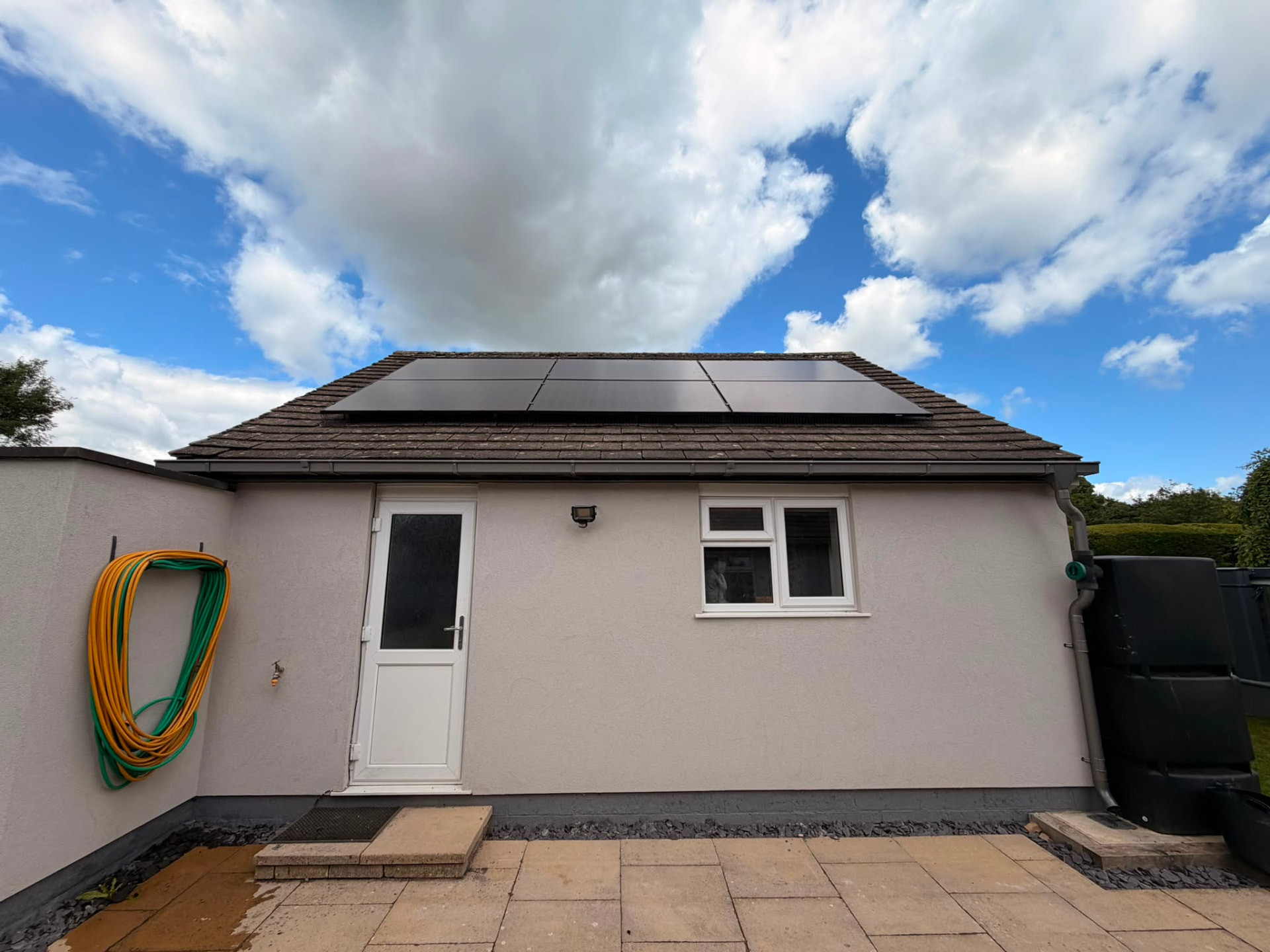

Rear elevation of a rendered outbuilding with roof-mounted solar panels
Array positioned to make best use of the available orientation.

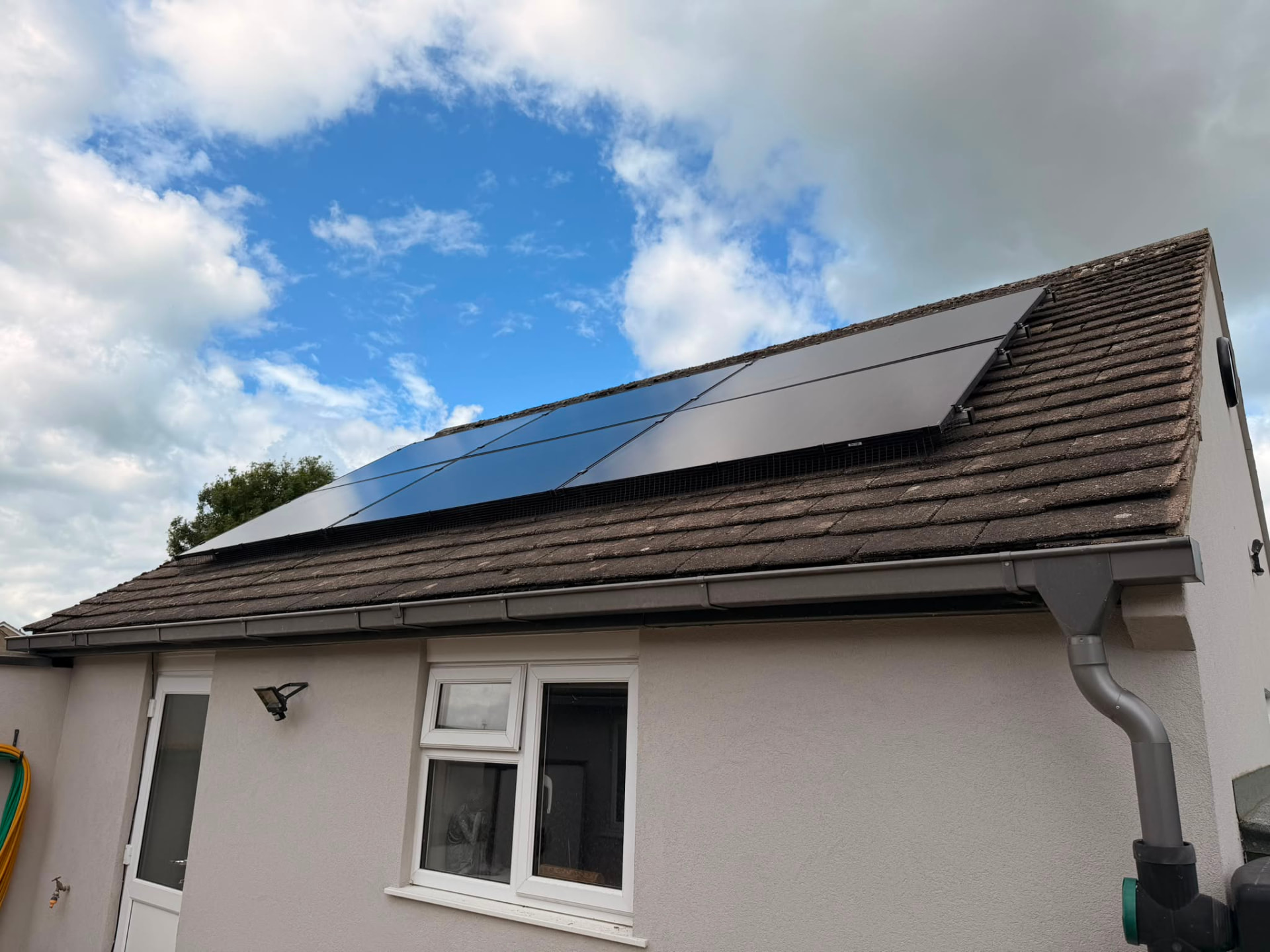

Angled view of solar panels along the pitch of a tiled roof
Panel rows aligned to the roof pitch for a flush, considered finish.

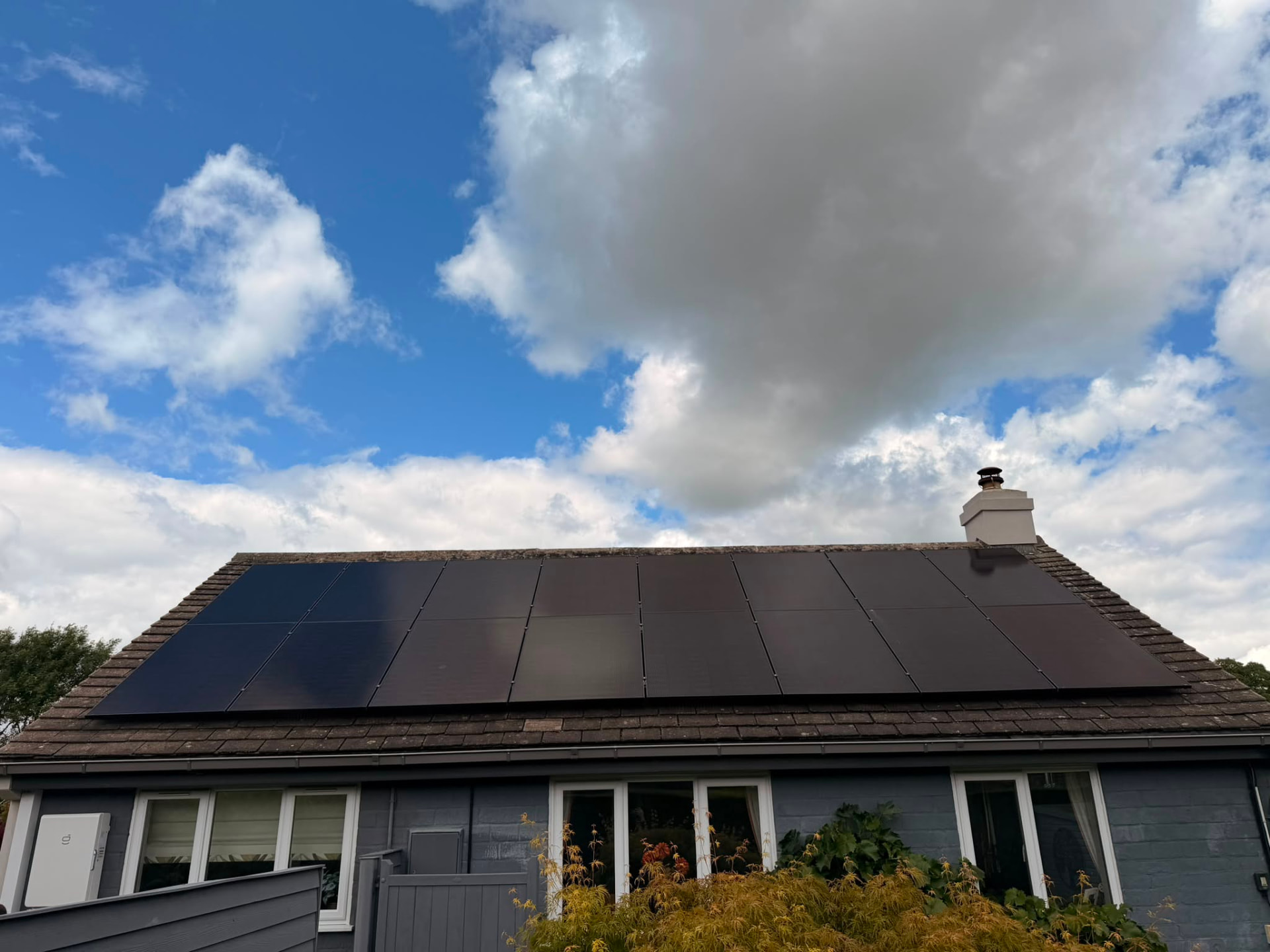

Full-width solar array across the main house roof beside a chimney
Second roof area carrying the remainder of the 9.9kWp array.
Sigenergy SigenStor battery storage unit and inverter wall-mounted with isolators
Sigenergy SigenStor storage, gateway and isolation installed to the external wall.

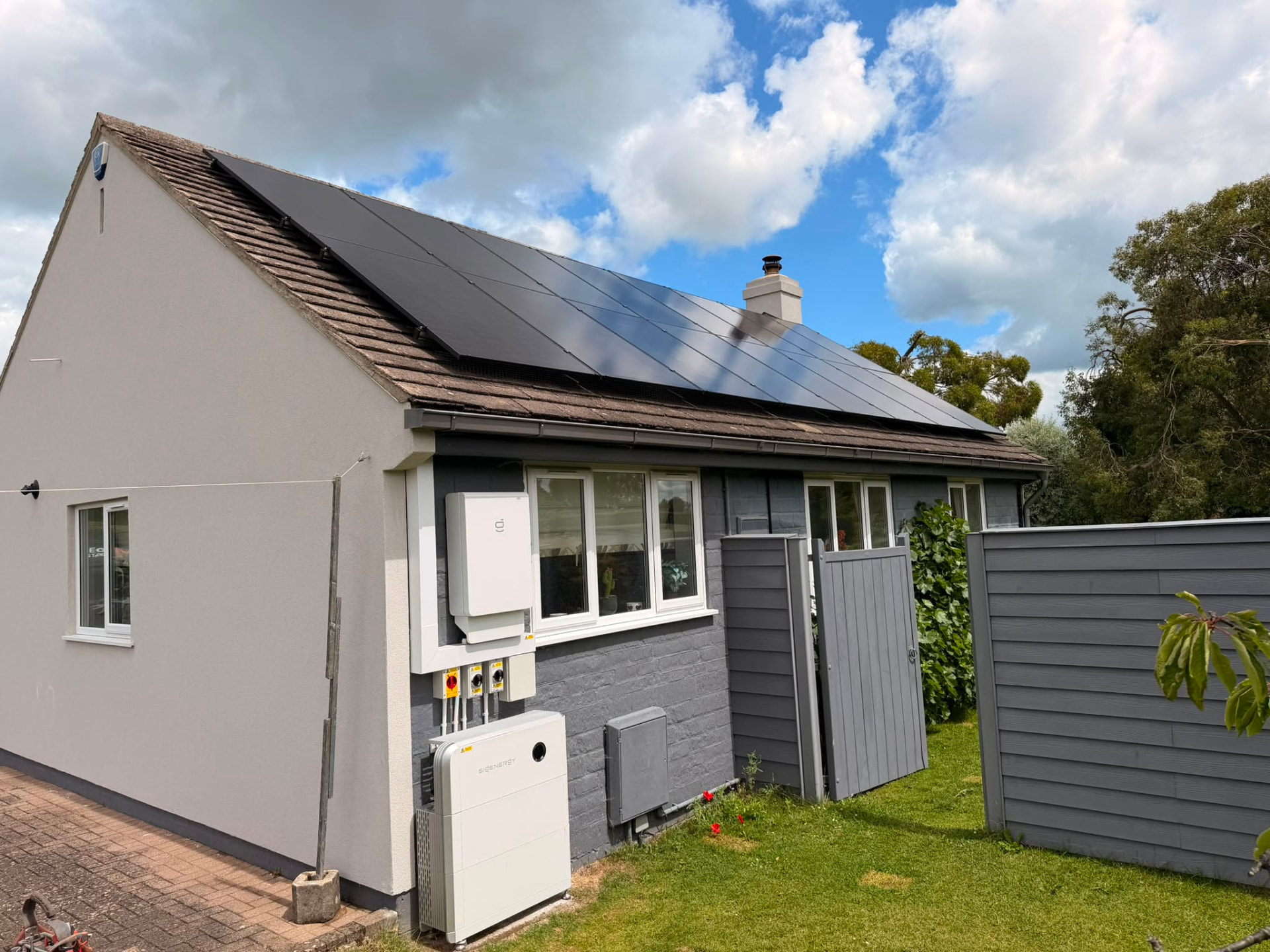

Gable end of a house with solar panels above and battery storage equipment below
Generation and storage brought together on one elevation.

Outcome

The property now generates and stores a substantial proportion of the electricity it uses, with intelligent energy management and the ability to keep running during a power cut.

“Our new solar and battery system has given us far greater control over how we generate and use electricity. ADM explained the options clearly and delivered a clean, carefully finished installation.”

Sarah M.

Homeowner, Minchinhampton
